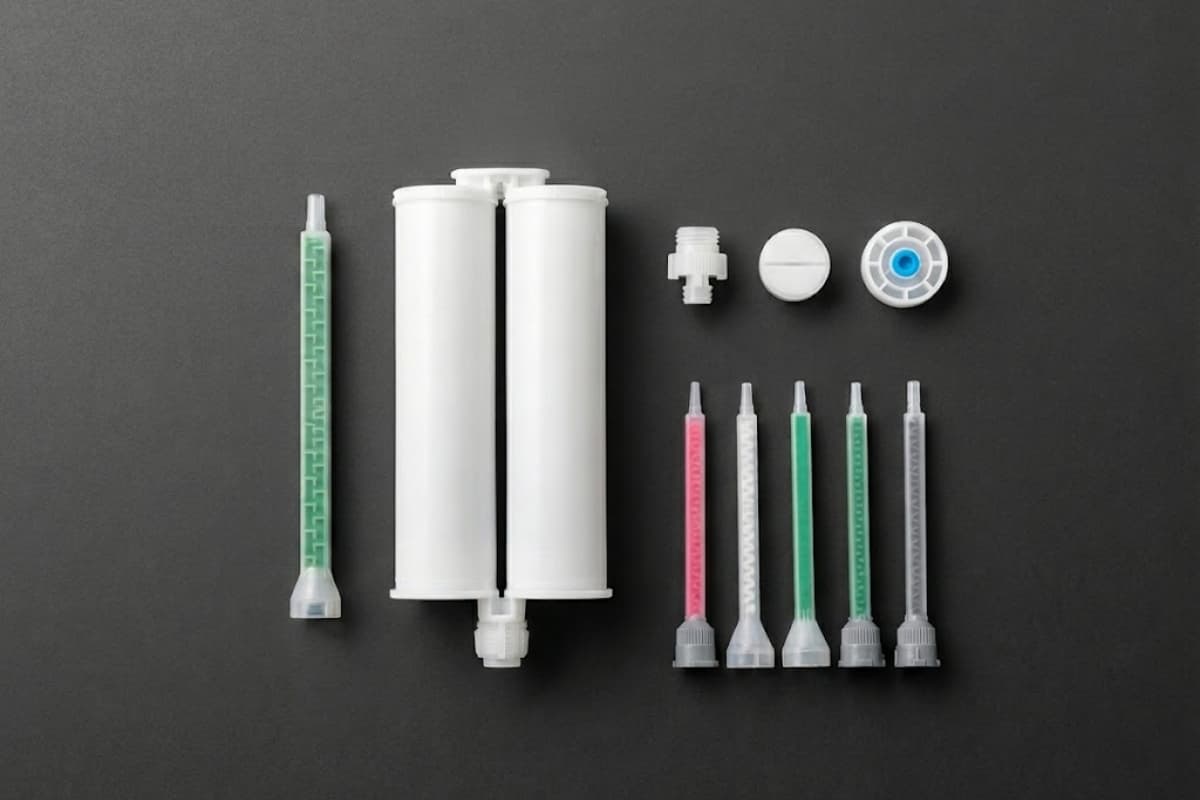

A 2K adhesive cartridge only dispenses correctly when the hardware around it holds, connects, and mounts it under pressure. Cartridge retainers clamp the cartridge in a gun or robot; couplers transfer air and lock the mixer; machine adapters bridge the cartridge to automated dispensing equipment. Getting the interface wrong causes leaks, off-ratio beads, and dropped cartridges mid-cycle. This guide explains each part, the bayonet vs screw vs flange choices, and how to select hardware that matches your components of a dispensing cartridge system.

1. What Integration Hardware Actually Covers

Three distinct parts sit between a filled cartridge and a finished bead:

Part	Job	Where it lives
Retainer	Clamps the cartridge body so pistons advance straight and the cartridge cannot back out under thrust	Inside a manual gun, pneumatic retainer sleeve, or robot mount
Coupler	Locks the mixer/air-line to the cartridge outlet and seals the pneumatic path	At the cartridge nose, between cartridge and static mixer
Machine adapter	Mounts the whole cartridge assembly onto a benchtop or robotic dispenser	Between retainer and the dispenser body / robot flange

They are sold separately or as a kit. When you source OEM dual-component cartridges, confirm whether the retainer and adapter are included or must be ordered to match your dispenser brand.

2. Cartridge Retainers: Holding the Cartridge Under Pressure

A retainer keeps the cartridge square to the pistons. Manual guns use a molded cradle; pneumatic retainers use an aluminium or steel sleeve rated to 100 PSI; robot-mounted retainers add a bracket and alignment boss. Undersized retainers let the cartridge bulge and break the ratio.

Retainer type	Pressure rating	Best for	Mount
Manual gun cradle	Hand thrust only	Low-volume field repair	In gun frame
Pneumatic sleeve (50–600 ml)	up to 100 PSI	Production lines, medium volume	Handheld or stand
Robot-mounted retainer	up to 100 PSI	Automated XYZ / cobot cells	Bracket + alignment boss
Bayonet cap retainer	up to 70 PSI	Quick-change single cartridges	Twist-lock on dispenser

For abrasive or high-pressure formulations, prefer an anodised aluminium or stainless sleeve over acetal. See the OEM custom static mixers note on material choices for custom builds.

3. Couplers & Air-Line Connections

The coupler does two jobs: it seats the static mixer on the cartridge outlet and it carries shop air to the pistons. Quick-connect NPT fittings (typically 1/4″ NPT female) let you swap dispensers fast, while the mixer locks via bayonet or threaded collar. A loose coupler drops pressure and streaks the bead.

Connection	Interface	Watch-out
Mixer to cartridge	Bayonet twist or 1/4-turn collar	Must click fully or mixer blows off
Air line to retainer	1/4″ NPT quick coupler	Use thread sealant; avoid cross-thread
Vacuum suck-back	Dispenser port	Needed to retract rods on empty cartridge

Match the coupler to the mixer family you run. Our static mixer nozzle selection guide covers which mixer outlet styles pair with which cartridge nose.

4. Machine Adapters: Mounting Cartridges to Automated Dispensers

A machine adapter converts the cartridge assembly into a drop-in module for a benchtop dispenser or robot. It defines the flange pattern, threaded boss, and air routing. The adapter must match both the cartridge size and the dispenser’s mounting face, or the pistons will not align with the drive rods.

Adapter class	Connects	Typical use
Flange adapter	Cartridge retainer → dispenser body	Benchtop semi-auto dispensers
Threaded boss adapter	Retainer → robot end-effector	Cobot / XYZ gantry cells
Filling-line adapter	Cartridge → filling machine	High-volume 2K filling (see cartridge filling machines)

For full lines, the adapter is part of the wider adhesive dispensing equipment overview that links filler, retainer, and robot controller.

5. Bayonet vs Screw vs Flange: Matching the Interface

Interface geometry decides whether parts even mate. Bayonet (twist-lock) is fastest for frequent changeovers; threaded collars seal better at higher pressure; flange adapters carry the load on robotic mounts. Cartridge and mixer systems use letter codes — our C-system and F-system mixer interfaces explains C-system and F-system mixer noses and which cartridges they accept.

Interface	Speed	Pressure	Use when
Bayonet	Fastest (1/4 turn)	up to ~70 PSI	Frequent cartridge swaps, manual cells
Threaded collar	Slower	up to 100 PSI	Steady high-pressure production
Flange	Bolted	Robot payload	Mounted on automated equipment

Confirm the cartridge nose code (A, B, C, F-system) before ordering adapters — a wrong code is the most common cause of “the mixer won’t lock” returns.

6. Selection Checklist: Ratio, Size, Pressure, Mount

Use this checklist to specify integration hardware. It assumes you already know the dual-component cartridge sizing and ratio compatibility for your process.

Parameter	Confirm	Why it matters
Mix ratio	1:1 / 2:1 / 4:1 / 10:1	Retainer and push-disk must match ratio
Cartridge size	50 / 200 / 400 / 600 ml	Sleeve and flange must fit the body
Interface code	A / B / C / F-system	Decides bayonet vs threaded coupling
Max pressure	PSI at dispenser	Sleeve material rated accordingly
Mount	Gun / stand / robot	Picks adapter class

A short Btektech dispensing adapters guide from Btektech also lists the retention, air-transfer, and interface checks used in industrial adapter sourcing.

7. Common Integration Failures & Fixes

Symptom	Likely cause	Fix
Mixer blows off mid-shot	Coupler not fully locked	Seat bayonet until click; check collar
Off-ratio / streaky bead	Cartridge not square in retainer	Use correct-size sleeve; align pistons
Air leak at joint	Cross-threaded NPT or no sealant	Re-thread; apply PTFE sealant
Cartridge drops on robot	Wrong flange / loose bracket	Bolt flange adapter; torque to spec
Rods won’t retract	No vacuum suck-back port	Use dispenser with suck-back function

Frequently Asked Questions

What is the difference between a cartridge retainer and a machine adapter?

A retainer clamps the cartridge so its pistons advance straight; a machine adapter mounts the whole retainer-and-cartridge assembly onto a dispenser or robot. The adapter sits upstream of the retainer and defines the flange or threaded interface to the equipment.

Can one retainer handle multiple mix ratios?

Multi-ratio pneumatic retainers (e.g. A-system 50 ml) accept 1:1, 2:1, 4:1 and 10:1 cartridges through quick-change push disks. Single-ratio molded gun cradles do not. Always confirm the ratio range stamped on the retainer before swapping cartridges.

Bayonet or threaded coupling — which should I choose?

Pick bayonet for fast, frequent cartridge swaps at lower pressure (up to ~70 PSI). Choose a threaded collar when you run steady high-pressure production up to 100 PSI and need a tighter seal. Robotic mounts use a bolted flange for load carrying.

Why does my mixer not lock onto the cartridge?

Almost always a mismatch between the cartridge nose code (A, B, C or F-system) and the mixer family. Check the code on the cartridge and match it to the mixer outlet; see our C-system and F-system mixer guide for the matrix.

Do I need a vacuum suck-back port on the dispenser?

If you want the rods to retract automatically when the cartridge empties, yes. Vacuum suck-back pulls plungers back for clean changeover. Manual guns and basic pneumatic retainers without this port require manual rod retraction.

Conclusion

Retainers, couplers, and machine adapters are the small parts that decide whether a 2K cartridge dispenses on-ratio and leak-free. Match the interface code first, then size, pressure, and mount. Start from the components of a dispensing cartridge system and the OEM dual-component cartridges to narrow the options, and confirm the mixer nose with the static mixer nozzle selection guide. If your cartridge, dispenser, or robot is non-standard, OEM custom static mixers can build a matched adapter from drawings or samples.

Not sure which retainer or adapter fits your setup? Send us your cartridge ratio, size, and dispenser model and we’ll confirm compatibility.
