✓ ISO 9001:2015 Certified Manufacturer
High-Precision Static Mixing Nozzles & Dynamic Mixing Systems
Eliminate dispensing inconsistency and off-ratio curing at the source. HaiJing delivers precision-molded static mixing nozzle systems engineered for void-free, uniform blending of two-component reactive resins.
Full material traceability, and engineering support from DFM analysis to mass production — for epoxies, polyurethanes, silicones, acrylics and more.
15+
Years of precision dispensing & packaging experience
85M+
Annual output of static & dynamic mixers
60+
High-precision injection machines (10T–600T)
100%
Inline & AQL quality verification — leak-proof dispensing

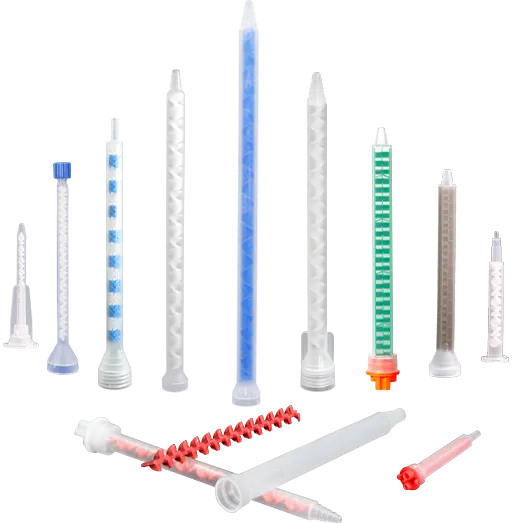

Complete Product Range
Explore Our Mixer Systems
Select the correct mixer geometry and interface to prevent backpressure, seal damage, and material waste. Consult our application engineers to match your cartridge and adhesive chemistry.

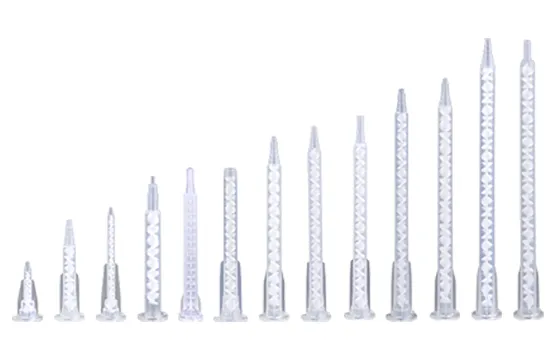

Static Mixer A-System
- Interface: Compact bayonet connection
- Mix Ratios: 1:1, 2:1, 4:1, 10:1
- Applications: 50 ml manual cartridges, epoxies, silicones, low-viscosity acrylics

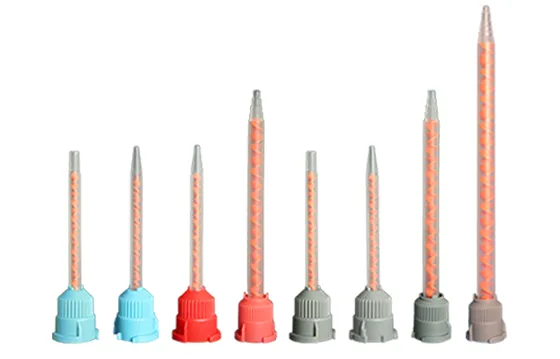

Static Mixer B-System
- Interface: Twist-lock connection
- Mix Ratios: 1:1, 2:1, 4:1, 10:1
- Applications: 50 ml precision dispensing, dental impressions, electronic adhesives

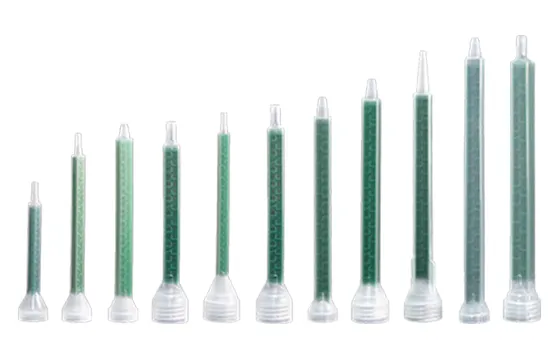

Static Mixer C-System
- Interface: Bell-inlet (bell housing) system
- Mix Ratios: 1:1, 2:1, 4:1, 10:1
- Applications: 200 ml / 400 ml bulk dispensing, high-volume industrial potting

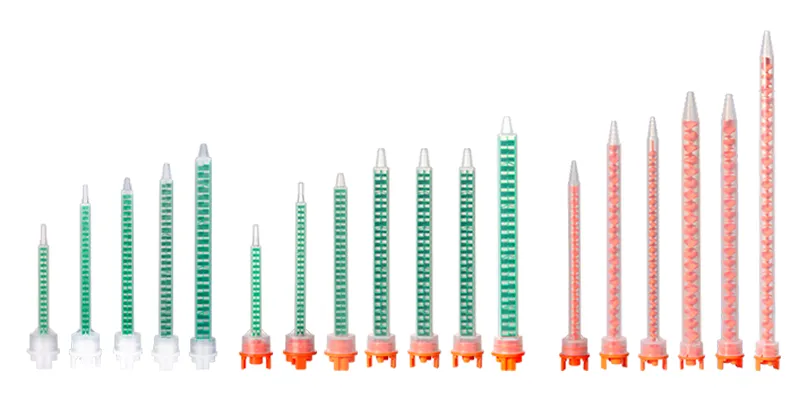

Static Mixer F-System
- Interface: Threaded 2 separate holes
- Mix Ratios: 1:1, 2:1, 4:1, 10:1
- Applications: High-pressure pneumatic dispensing, high-viscosity structural pastes
Dynamic Mixing Systems
- Interface: Motorized rotary mixing chamber
- Mix Ratios: Wide / extreme (up to 10:1+)
- Applications: Large viscosity differentials, reactive urethane foams, automated meter-mix
Mixing Technology
Engineered for Flawless Fluid Dynamics
Two-component adhesives fail when fluid division is incomplete. Inside the tube, fixed spiral elements — no moving parts — split the flow and alternately twist it clockwise, then counter-clockwise, doubling the interleaved layers at every stage (2n, n = element count) for molecular-level homogeneity in a single pass.
[Part A] ──┐
├──► Element 1: Split & Twist CW
[Part B] ──┘
└──► Element 2: Split & Twist CCW
└──► 100% Homogeneous Bead
Layers: 2n · 12 elements = 4,096 interleaved layers
No moving parts — the spirals are fixed in the tube.
Only the fluid turns: clockwise, then counter-clockwise.
Helical Mixing Elements
The standard for laminar flow. Continuous alternating left/right spirals minimise shear-induced temperature rise in heat-sensitive polyurethanes — ideal for general epoxies, silicones and acrylics.
Square Static Mixer (Quadro) Technology
Thorough mixing in a shorter length. The quadro geometry reduces retained fluid volume inside the disposable nozzle by up to 30%, cutting expensive adhesive waste — perfect for robotic cells with limited clearance.
Calibrated Back-Pressure Control
Each nozzle diameter and stepped tip balances fluid velocity against resistance, preventing ratio distortion and cartridge leakage during high-speed automated dispensing.
100% Virgin Engineering Plastics & In-House Injection Molding
Material Purity
100% virgin PP, POM, and PBT ensure chemical inertness against solvents, amines, and isocyanates — no regrind, no contamination, no compatibility surprises.
Burst-Resistant Housings
Reinforced outer walls and uniform wall thickness eliminate expansion and blowout during high-thrust pneumatic dispensing.
Burr-Free Internal Elements
Molded with tooling built in our own CNC/EDM facility. Razor-sharp leading edges divide flow streams cleanly, without microvoids or dead spots that trap cured material.
Leak-Proof Connector Options
Stepped tips, threaded interfaces, and Slip Luer / Luer Lock options for precision needles — a sealed fit on every cartridge system.
Our Factory Strength
Vertically Integrated Production
Our 20,000+ m² Dongguan facility houses CNC/EDM tooling, precision injection molding, assembly and metrology under one roof — eliminating outside vendors to protect both lead time and intellectual property.
Certified, Data-Driven Quality System
ISO 9001:2015 processes govern incoming material inspection, inline process monitoring, and AQL final verification, so every batch ships leak-proof and dimensionally consistent.
- In-house tooling – CNC & EDM mold workshop for rapid DFM iteration
- 60+ injection machines – 10T to 600T clamping force
- 200+ technicians – molding, QC & application engineering
- Batch-level traceability – FAI reports & material lot control
🏭
20,000+ m² Facility
Dedicated Dongguan manufacturing campus
60+ Injection Machines
10T–600T, automated cells
200+ Well Trained Staff
🛠️
In-House Tooling
CNC / EDM mold workshop
ISO 9001:2015
Certified quality management
📦
85M+ Units / Year
Stable mass-production capacity
Full-Scope OEM/ODM Customisation
STEP 1
DFM Analysis
Mold-flow simulation and element sizing matched to your adhesive rheology.
STEP 2
Rapid Prototyping
3D-printed and pilot samples for fit tests and mix-ratio verification.
Tooling & FAI
STEP 4
Mass Production
Cleanroom injection molding with batch-level traceability.
Customisation Parameters
- Element geometry & count – 6 to 48 elements; helical, quadro, or hybrid
- Custom interfaces – bell housings, threaded fittings, epoxy bayonets
- Material & colour matching – custom polymers for temperature / solvent resistance
- Private labelling & packaging – silkscreen branding, custom bagging
- Confidentiality – all tooling protected under NDA
Proven Performance in Demanding Applications
Automotive & Transportation
TIM potting for battery packs, ECU coating, and structural bonding of body-in-white assemblies.
Electronics & Semiconductors
Underfill, camera module sealing, SMT red glue, and PCB encapsulation with void-free results.
Aerospace & Composites
Void-free epoxy mixing for carbon fibre layup and honeycomb panel bonding.
Renewable Energy
Junction box potting and inverter weatherproof sealing for solar and power electronics at scale.
Medical & Healthcare
Catheter bonding, microfluidic sealing, and needle assembly with clean, consistent beads.
Construction & Building
Chemical anchoring, joint sealing, and crack injection with high-viscosity epoxy pastes.
Mixer Selection Guide
Send us your adhesive data sheet — our engineers will specify the exact geometry.
Mixer Selection Guide
Not sure which mixer is right for your material and application? Read our comprehensive guide.
Download Technical Datasheets
Access detailed specifications, material properties, and dimensional drawings for all our mixer systems.
Frequently Asked Questions
Find answers to common questions about mixer performance, compatibility, and best practices.
Complete Dispensing Setup — Integrated Packaging & Tools
🧪
Cartridges
50 ml, 200 ml, 400 ml — single & dual (1:1, 2:1, 4:1, 10:1)
🔫
Manual Dispensing Guns
High mechanical advantage, fatigue-free operation
⚙️
Pneumatic Dispensing Guns
Regulated air-driven design for continuous flow
🤖
Automated Coordinate Applicators
Multi-axis robots, ±1% repeatability, optional CCD vision
Frequently Asked Questions
Answers from our application engineering team.
Helical gives gentle, low-shear mixing for most viscosities. Quadro achieves similar efficiency in a shorter length — ideal for robotic arms with limited clearance and for reducing residual waste inside the disposable nozzle by up to 30%.
Backpressure depends on viscosity, inner diameter, and element count. Our engineering team analyses your rheology data to specify the exact nozzle geometry for balanced flow — protecting both mix ratio and cartridge seals.
When viscosity extremes are large (e.g., watery catalyst + thick paste), ratios are extreme (100:1 down to 10:1), or high-shear agitation is needed for fast-reacting foams. The motor-driven rotor ensures a uniform mixture independent of flow rate.
Yes. All our interfaces (A, B, C, F) conform to international standards, ensuring a leak-free fit with both HaiJing and standard 50 ml / 200 ml / 400 ml cartridges.
We provide evaluation sample kits for fit and fluid testing. Once parameters are confirmed, samples are dispatched quickly. Custom tooling and DFM prototypes can also be developed on request.
