Dynamic Mixers for
High-Performance Blending
For the most challenging mixing applications, our Dynamic Mixers provide the ultimate solution. Featuring a motor-driven rotating element, these mixers use mechanical force to guarantee a perfectly homogeneous blend for materials with high viscosity differences, extreme mixing ratios, or shear-sensitive properties. Eliminate mix variations and achieve superior performance with our robust and reliable dynamic mixing systems.
首页 » Dynamic Mixers

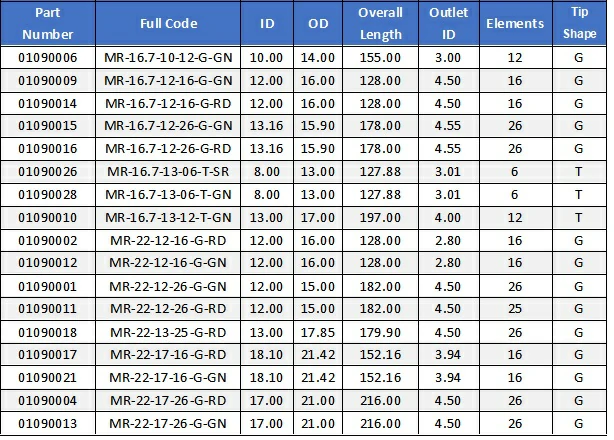

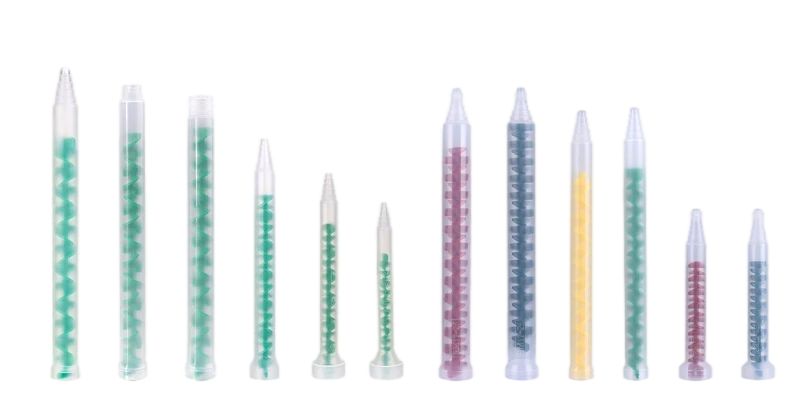

Dynamic Mixer Model Specifications
- For machine use
- Internal elements rotate
- Hole on elements to connect to motor
- Good for big viscosity difference of 2 parts

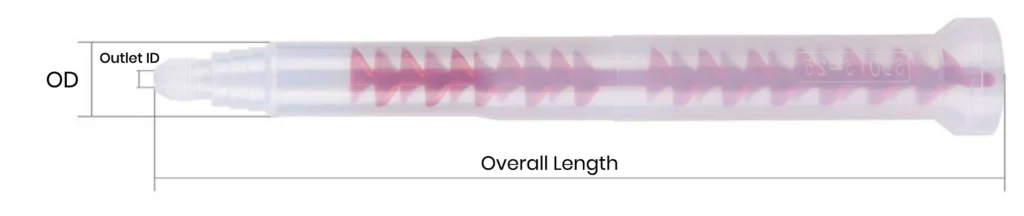

| Part Number | Full Code | ID | OD | Overall Length | Outlet ID | Elements | Tip Shape |
|---|---|---|---|---|---|---|---|
| 01100018 | FH-06-18-T-WH | 6.00 | 9.77 | 158.48 | 1.83 | 18 | T |
| 01100021 | FH-06-24-T-GN | 6.00 | 9.77 | 194.92 | 1.91 | 24 | T |
| 01100002 | FH-08-18-T-WH | 8.00 | 12.00 | 186.86 | 2.58 | 18 | T |
| 01100024 | FH-08-32-T-WH | 8.00 | 11.50 | 255.28 | 2.58 | 32 | T |
| 01100009 | FH-10-18-T-WH | 10.00 | 13.90 | 222.56 | 3.20 | 18 | T |
| 01100007 | FH-10-24-T-WH | 10.00 | 13.84 | 280.56 | 3.18 | 24 | T |
| 01100015 | FH-13-18-T-WH | 12.40 | 16.75 | 234.91 | 4.09 | 18 | T |
| 01100017 | FHX-06-18-T-RD | 6.00 | 9.77 | 158.48 | 1.83 | 18 | T |
| 01100019 | FHX-06-24-T-RD | 6.00 | 9.77 | 194.92 | 1.91 | 24 | T |
| 01100001 | FHX-08-18-T-RD | 8.00 | 12.00 | 186.86 | 2.58 | 18 | T |
| 01100025 | FHX-08-32-T-RD | 8.00 | 11.50 | 225.28 | 2.58 | 32 | T |
| 01100008 | FHX-10-18-T-RD | 10.00 | 13.90 | 222.56 | 3.20 | 18 | T |
| 01100010 | FHX-10-24-T-RD | 10.00 | 13.84 | 280.56 | 3.18 | 24 | T |
| 01100014 | FHX-13-18-T-RD | 12.40 | 16.75 | 234.91 | 4.09 | 18 | T |
| 01060022 | FQ-05-16-L-GY | 5.30 | 7.00 | 101.00 | 1.66 | 16 | L |
| 01060028 | FQ-05-24-L | 5.30 | 7.00 | 130.85 | 2.09 | 24 | L |
| 01100011 | FQ-07-24-T-GN | 7.60 | 9.94 | 136.01 | 3.11 | 24 | T |
| 01100004 | FQ-08-24-T-GN | 8.70 | 12.00 | 155.00 | 3.08 | 24 | T |
| 01100006 | FQ-10-24-T-GN | 10.00 | 16.86 | 180.55 | 3.60 | 24 | T |
| 01060021 | FQX-05-16-L-GY | 5.30 | 7.00 | 101.00 | 1.66 | 16 | L |
| 01060027 | FQX-05-24-L | 5.30 | 7.00 | 130.85 | 2.09 | 24 | L |
| 01100012 | FQX-07-24-T-GN | 7.60 | 9.94 | 136.01 | 3.11 | 24 | T |
| 01100003 | FQX-08-24-T-GN-01 | 8.70 | 12.00 | 155.00 | 3.08 | 24 | T |
| 01100013 | FQX-08-24-T-GN-02 | 8.70 | 12.00 | 155.00 | 3.08 | 24 | T |
| 01100020 | FQX-08-24-T-GN-03 | 8.70 | 12.00 | 155.00 | 3.08 | 24 | T |
| 01100005 | FQX-10-24-T-GN | 10.00 | 16.86 | 180.55 | 3.60 | 24 | T |
Custom configurations, including different element numbers, lengths, or materials (e.g. PBT), are available upon request.

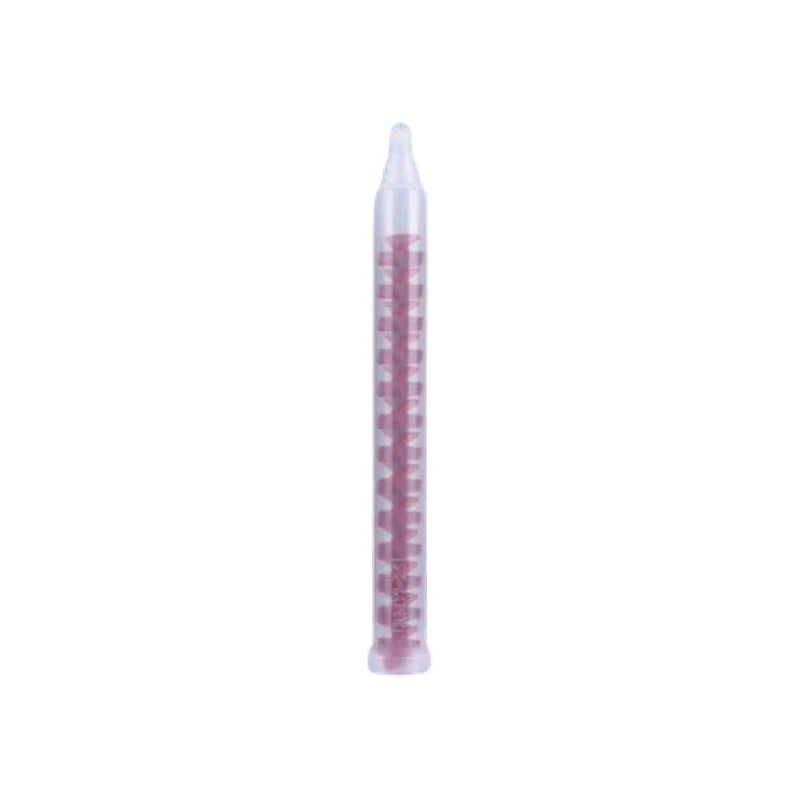

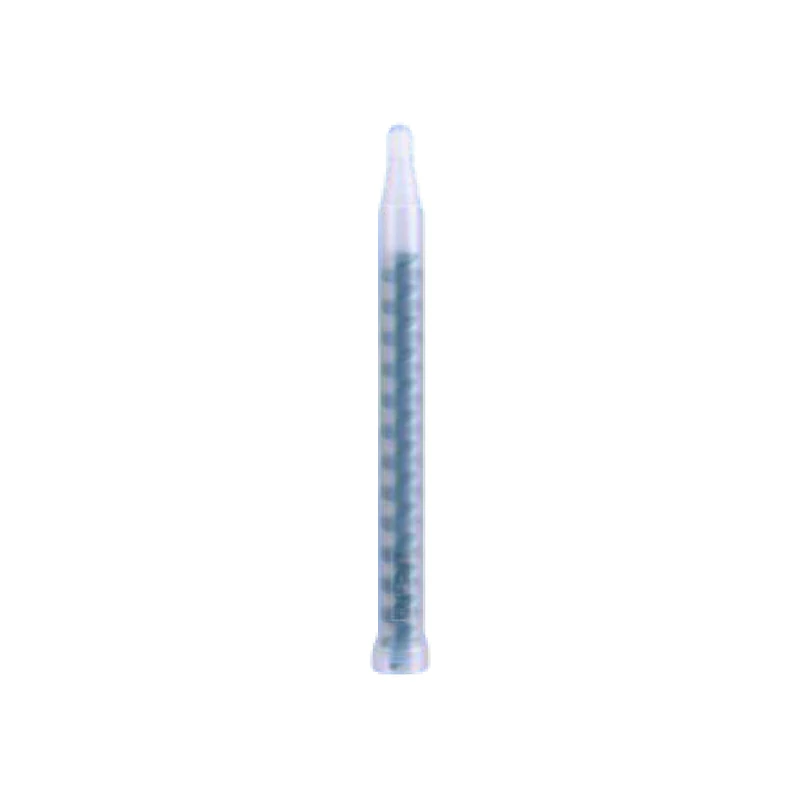

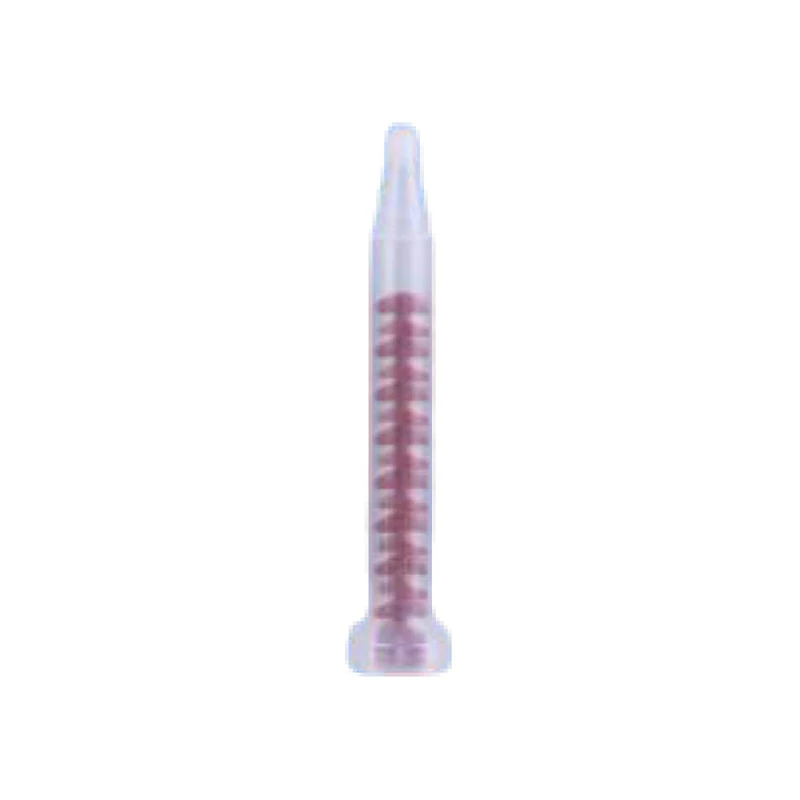

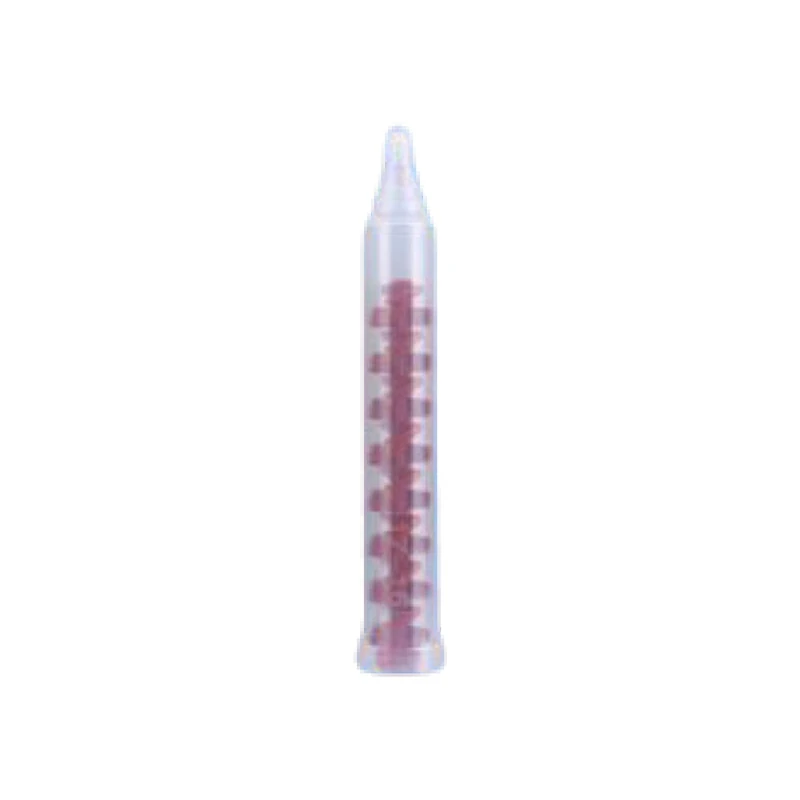

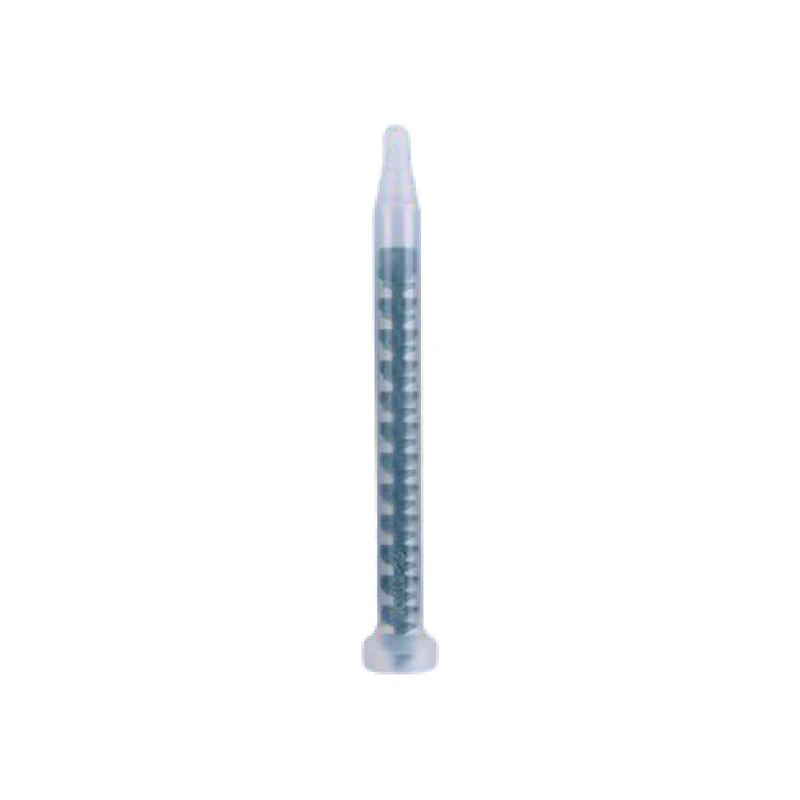

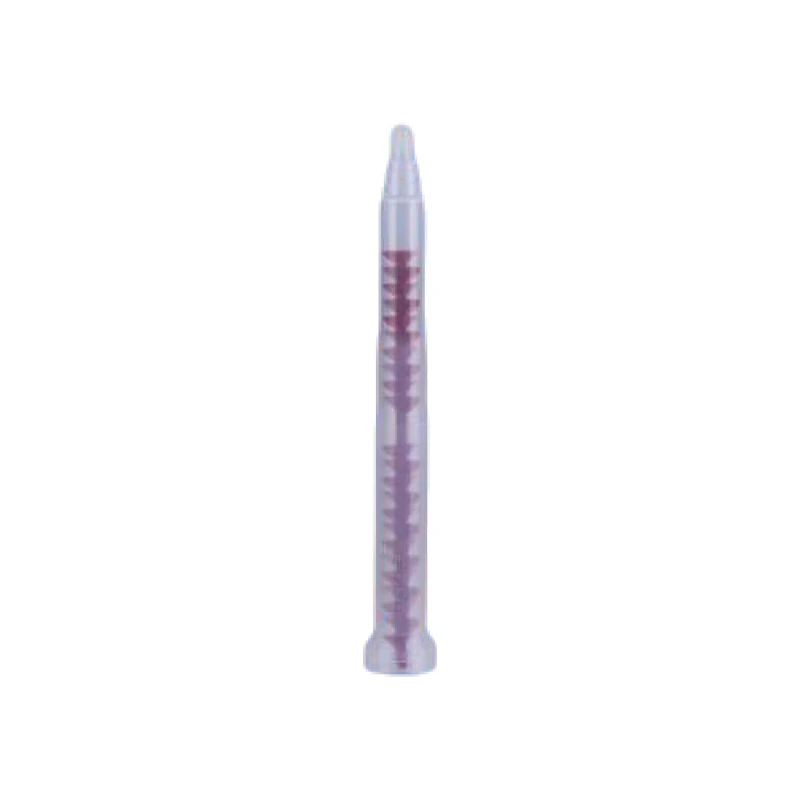

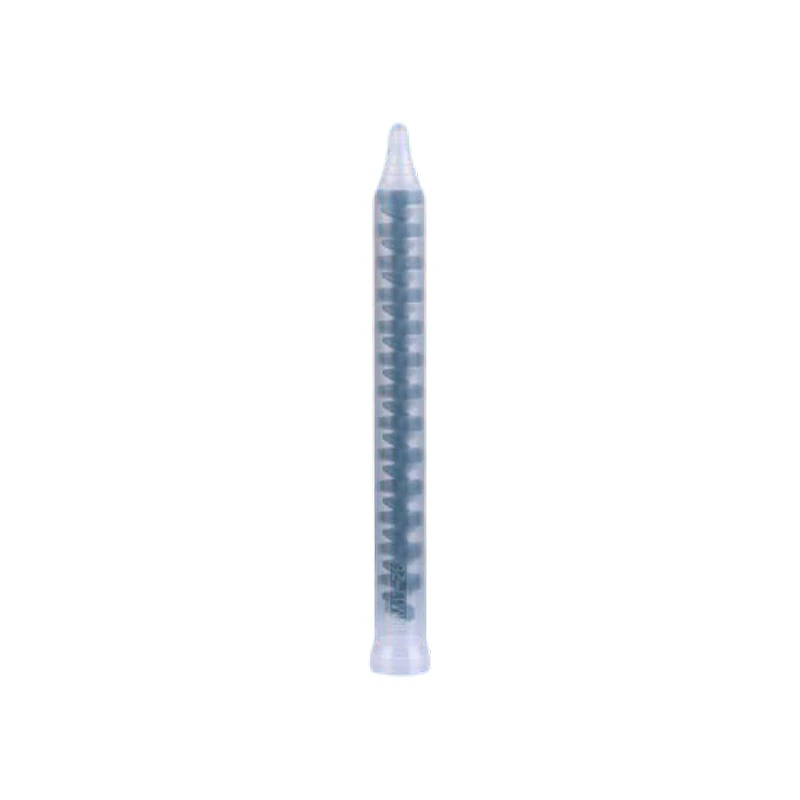

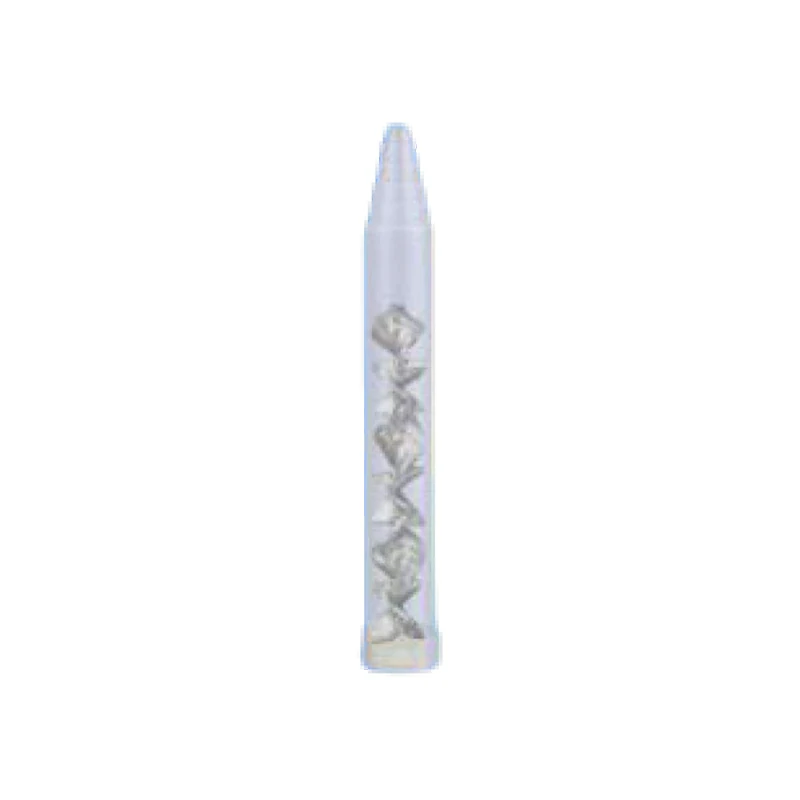

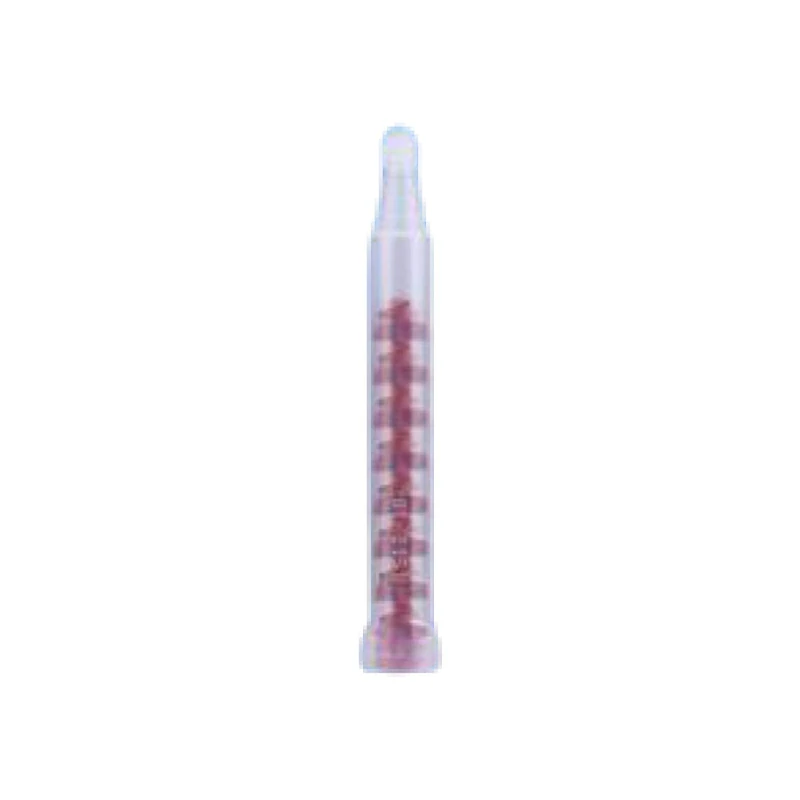

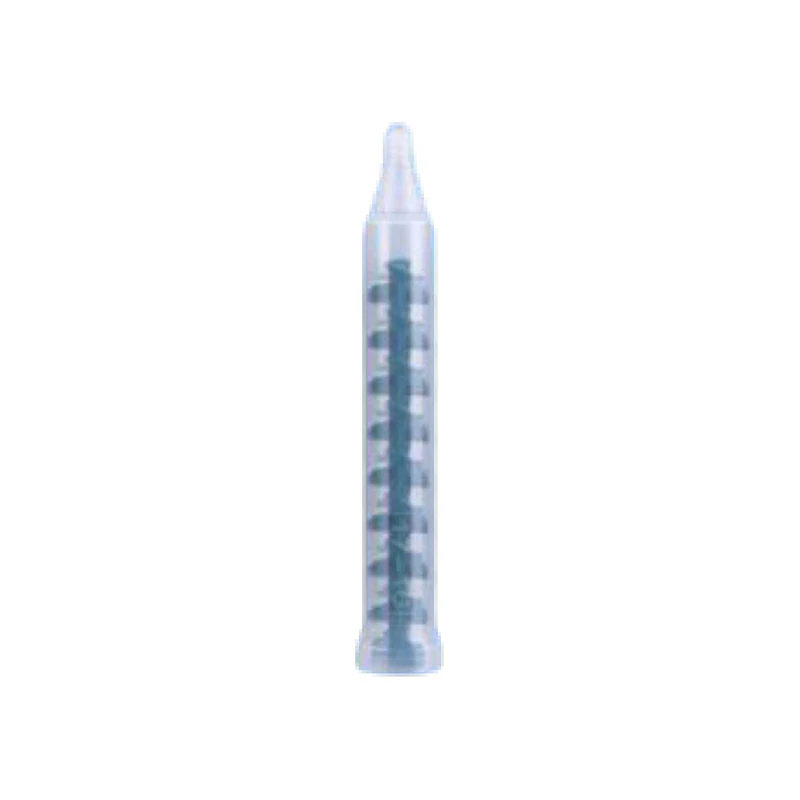

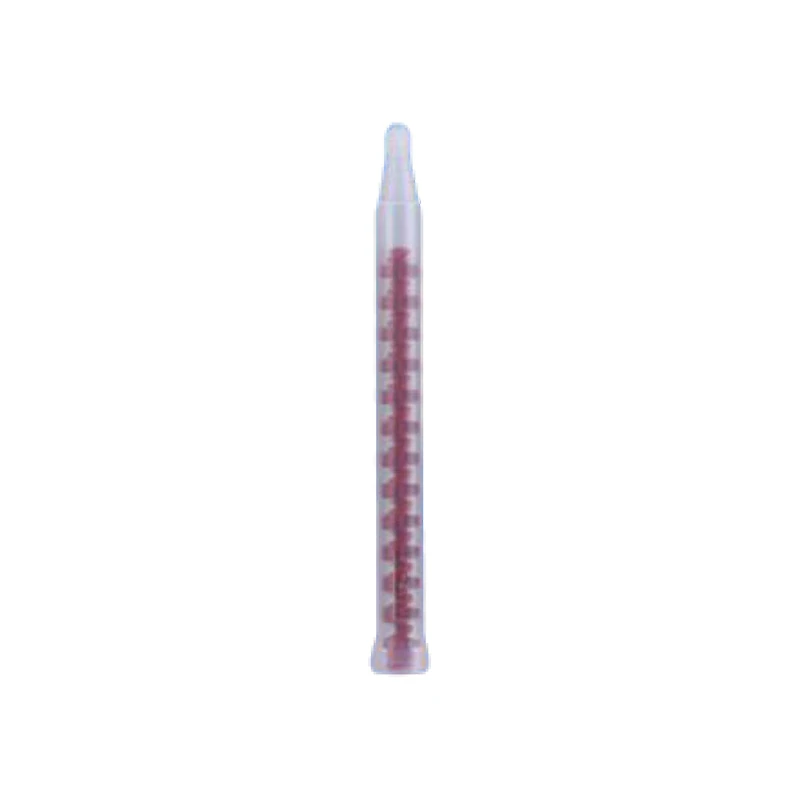

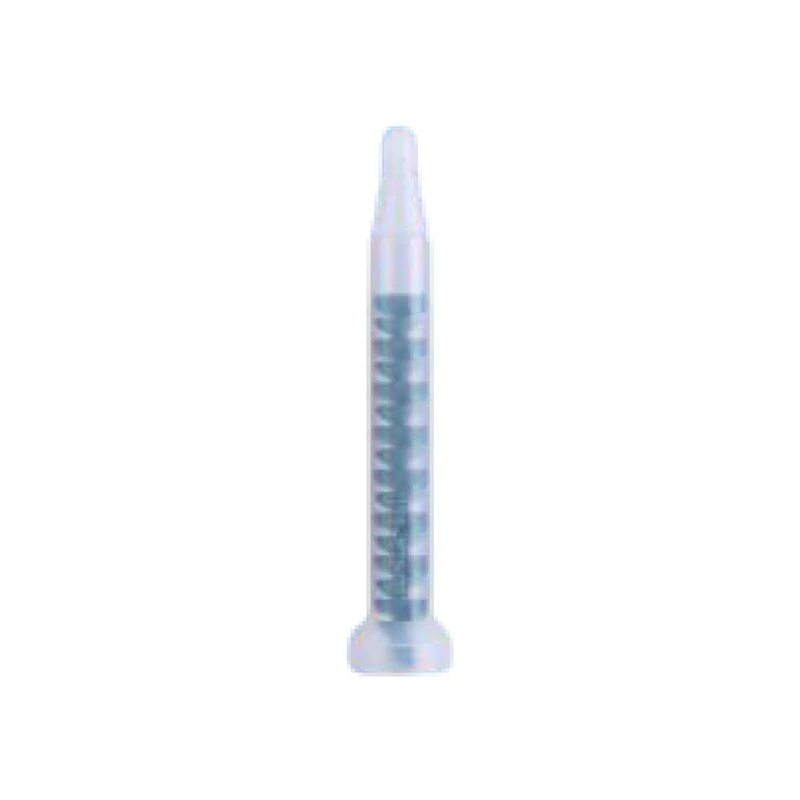

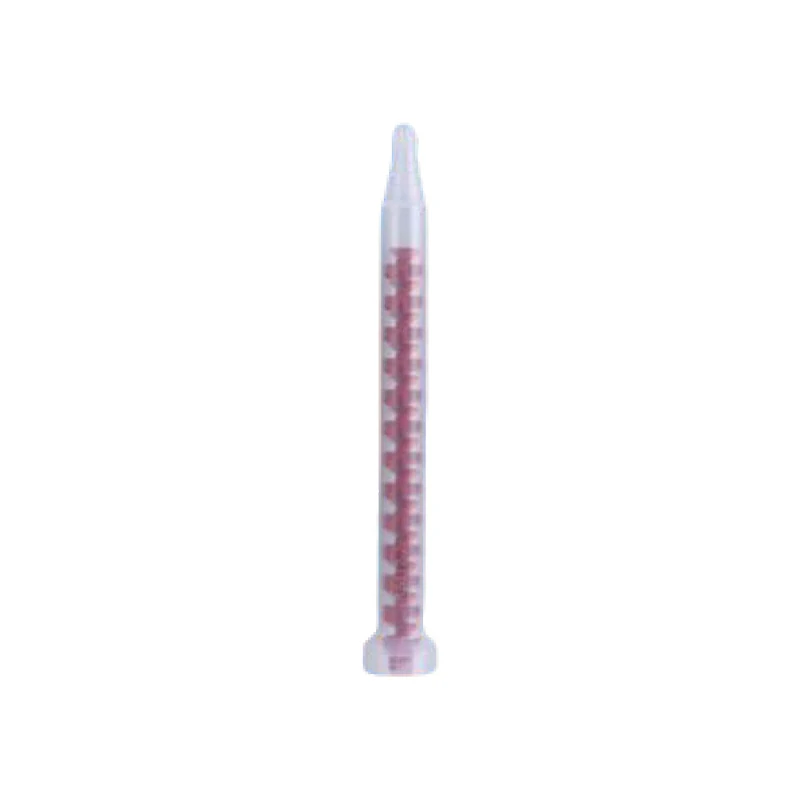

Featured Dynamic Mixers
Dynamic Mixers: The Ultimate Mixing Power

Forced Homogeneous Mixing
The active, rotating element uses mechanical shear to force materials together, guaranteeing a perfectly consistent, bubble-free mix regardless of viscosity, ratio, or flow rate.

Handles Difficult Materials
The ideal solution for extreme mix ratios (up to 100:1), vast viscosity differences, and shear-sensitive foams or silicones where static mixing is insufficient.

Shorter Mixer Length
Achieves a perfect mix in a much shorter length compared to static mixers, resulting in significantly less wasted material per cycle, especially with expensive adhesives.

Process Control & Versatility
By adjusting the rotational speed (RPM), you gain an extra level of control over the mixing process, allowing you to fine-tune performance for different materials.

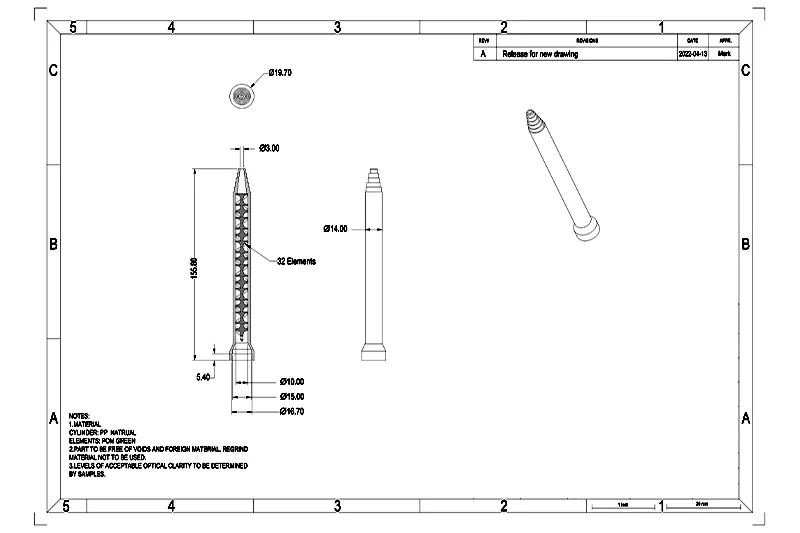

Technical Resources for Engineers

Chemical Compatibility Chart
Direct from Our Factory, Engineered for Quality
- Produced in our 20,000m² ISO 9001 certified facility.
- Molded on 70+ advanced, high-precision injection molding machines.
- Subject to 100% dimensional and functional inspection before shipment.
- Full traceability from raw material batch to finished product.
Have a Challenging Mixing Application?
Our engineering team can help you configure a complete dynamic mixing system, including motors and controllers, tailored to your material and process. Contact us for a technical consultation.
