Accurate, Efficient & Air-Free Cartridge Filling Machines
Revolutionize your material packaging process with our industrial filling machines. Designed to eliminate the inconsistencies and inefficiencies of manual filling, our systems deliver precise, repeatable, and bubble-free results for both single and dual-component cartridges. From semi-automatic benchtop units to fully integrated solutions, we provide the technology to improve your product quality, reduce material waste, and boost your production throughput.
DH-F001-400-50
2-Component Glue Filling Machine
Key Features：
-
One machine supports 2 different-sized cartridges
Piston assembly function
50ml, 75ml, 200ml, 250ml, 400ml, 490ml cartridges
Ratio - 1:1, 2:1, 4:1, 10:1
5-15 cartridges per minute
Viscosity - 1,000-20,000 mPa.s -
Size of machine - L1100*W900*H1300mm
Wattage - 3Kw
Air pressure - 0.4-0.7mPa
Siemens PLC and HMI
Glue tank - 30L*2, optional heating

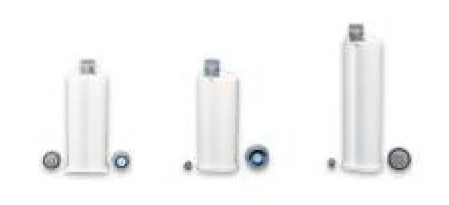

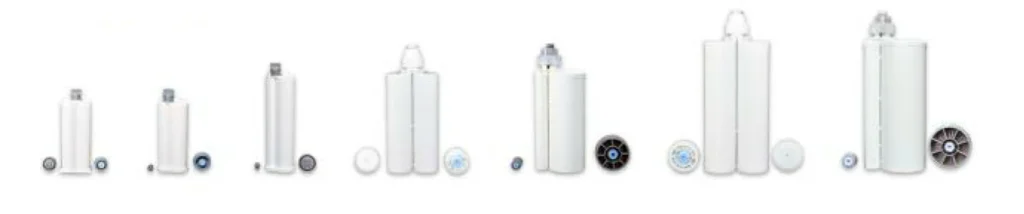

Compatible Consumables:

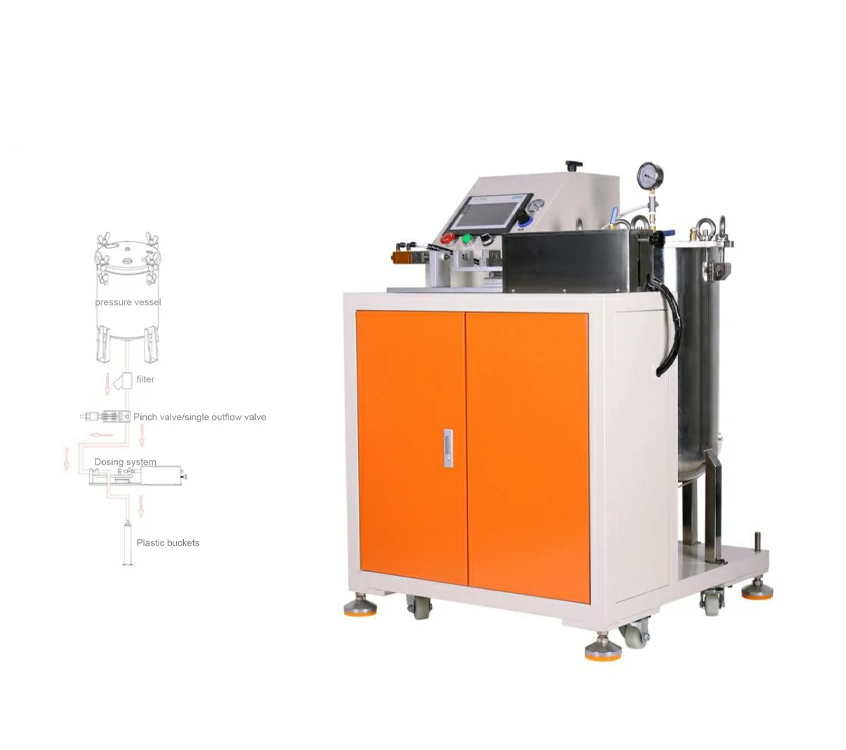

DH-F002
Single Component Glue Filling Machine
Key Features：
-
20cc, 30cc, 50cc, 75cc cartridges
5-30 cartridges per minute
Viscosity - 100-20,000 mPa.s
-
Size of machine - L1100*W700*H1000mm
Wattage - 0.5Kw
Air pressure - 0.4-0.7mPa Siemens PLC and HMI

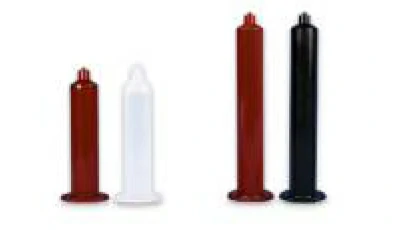

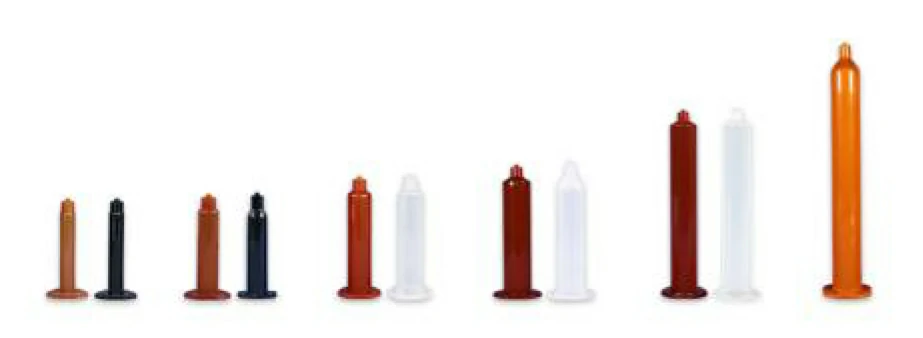

Compatible Consumables:

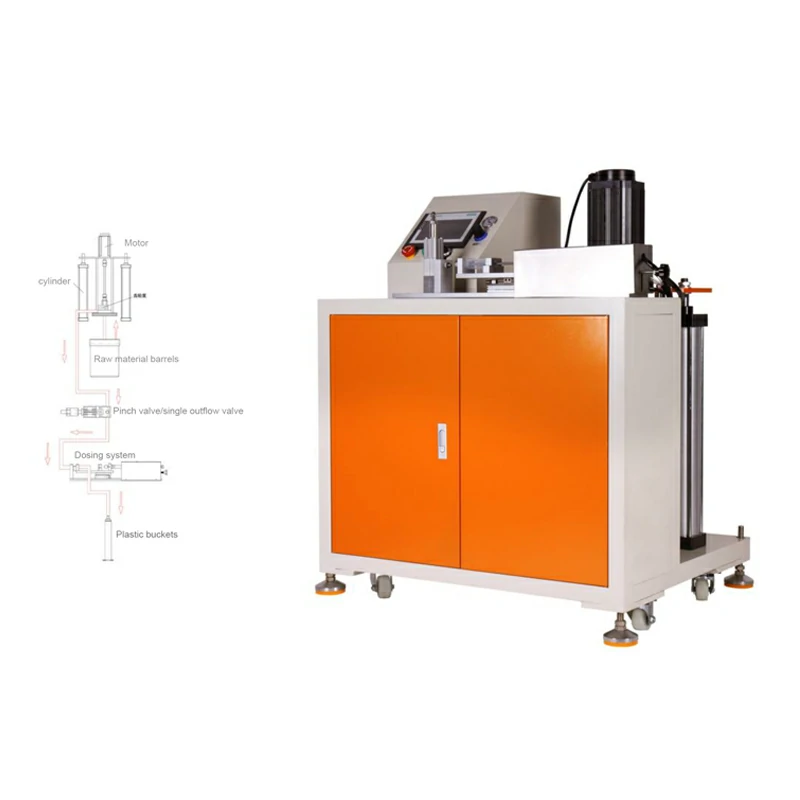

DH-F003
Single Component Glue Filling Machine
Key Features：
-
Compression plate
20cc, 30cc, 50cc, 75cc cartridges
5-30 cartridges per minute
Viscosity - 5,000-1,000,000 mPa.s
-
Size of machine - L1000*W700*H11100mm
Glue tank - 20L, optional heating
Wattage - 0.5Kw
Air pressure - 0.4-0.7mPa
Siemens PLC and HMI
Compatible Consumables：

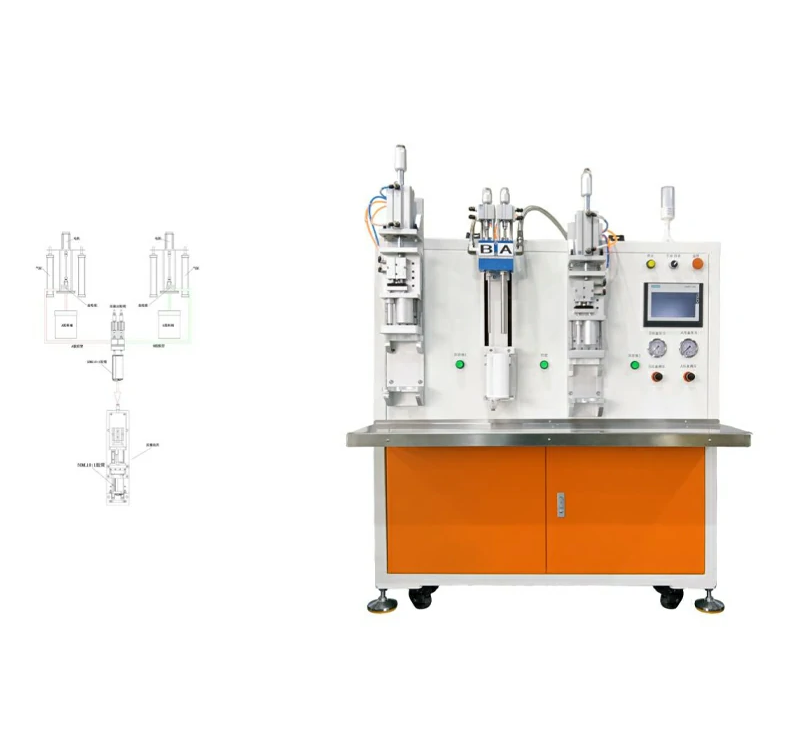

DH-F005-5010
2-Component Glue Filling Machine
Key Features：
-
1 filling + 2 piston assembly
50ml, 75ml, 250ml, 490ml cartridges
Ratio -10:1
5-10 cartridges per minute
Viscosity - 10,000-1,000,000 mPa.s
-
Size of machine - L1200*W1300*H1600mm
Wattage - 3Kw
Air pressure - 0.4-0.7mPa
Siemens PLC and HMI
Glue tank - 20L*2, optional heating

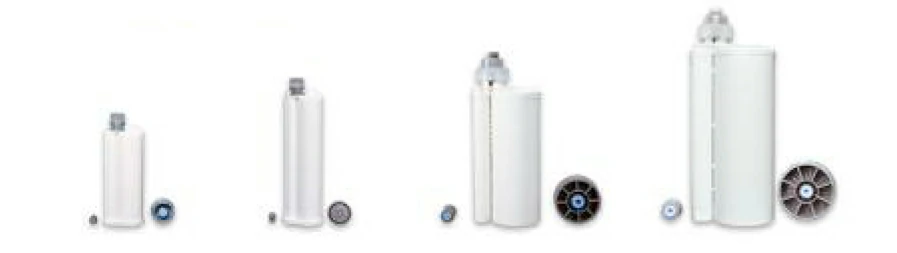

Compatible Consumables：

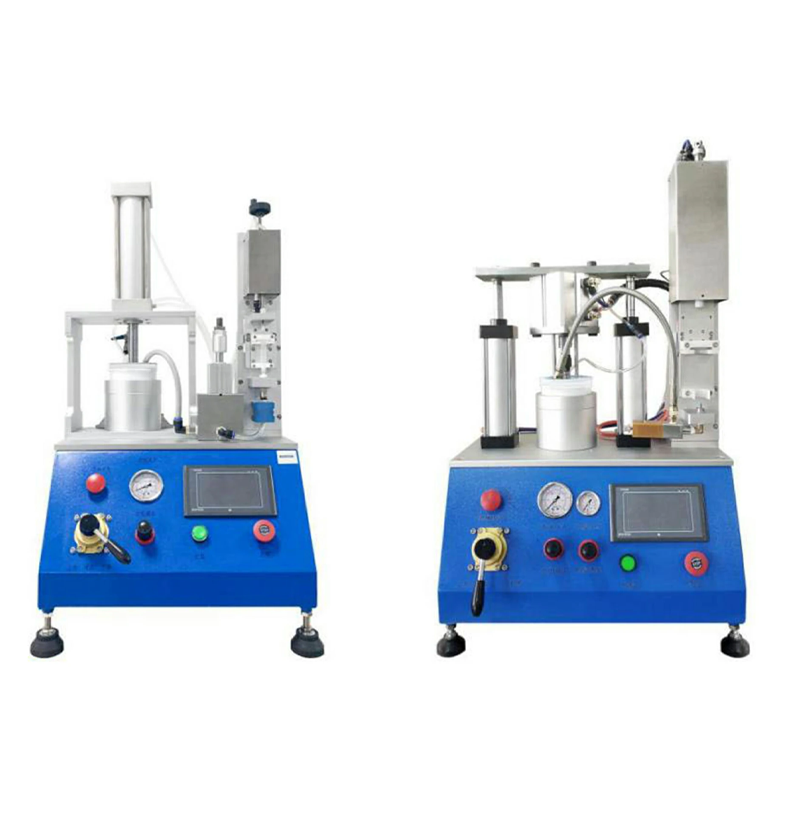

DH-F009
Table-Top Single Component Filling Machine
Key Features：
-
Original pack size - under 1L
For 1cc, 10cc, 20cc, 30cc, 50cc, 75cc
Fill from small opening - piston pre-assembled
5-10 cartridges per minute
Viscosity - 100-20,000 mPa.s
-
Size of machine - L500*W400*H1000mm
Wattage - 0.2Kw
Air pressure - 0.4-0.7mPa
PLC and HMI
Compatible Consumables：

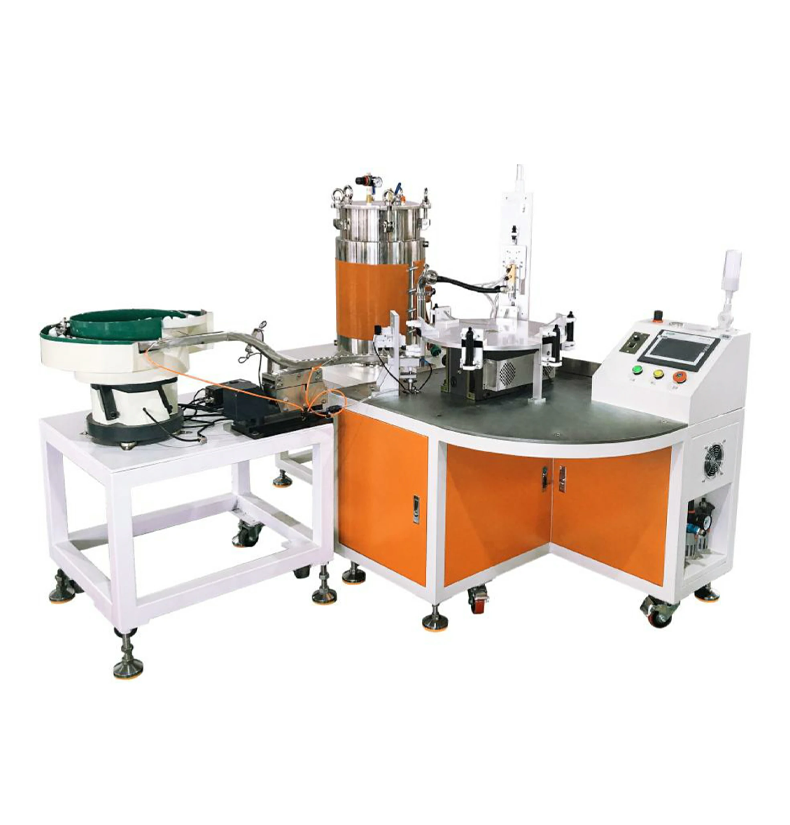

DH-AF016
Fully Automatic Single Component Filling Machine
Key Features：
-
Automatic material feeding
Piston assembly
Small opening filling
Capping
10cc, 20cc, 30cc, 50cc, 75cc cartridges
8-10 cartridges per minute
Viscosity - 100-20,000 mPa.s
-
Wattage - 2Kw
Air pressure - 0.4-0.7mPa
Siemens PLC and HMI
Compatible Consumables：

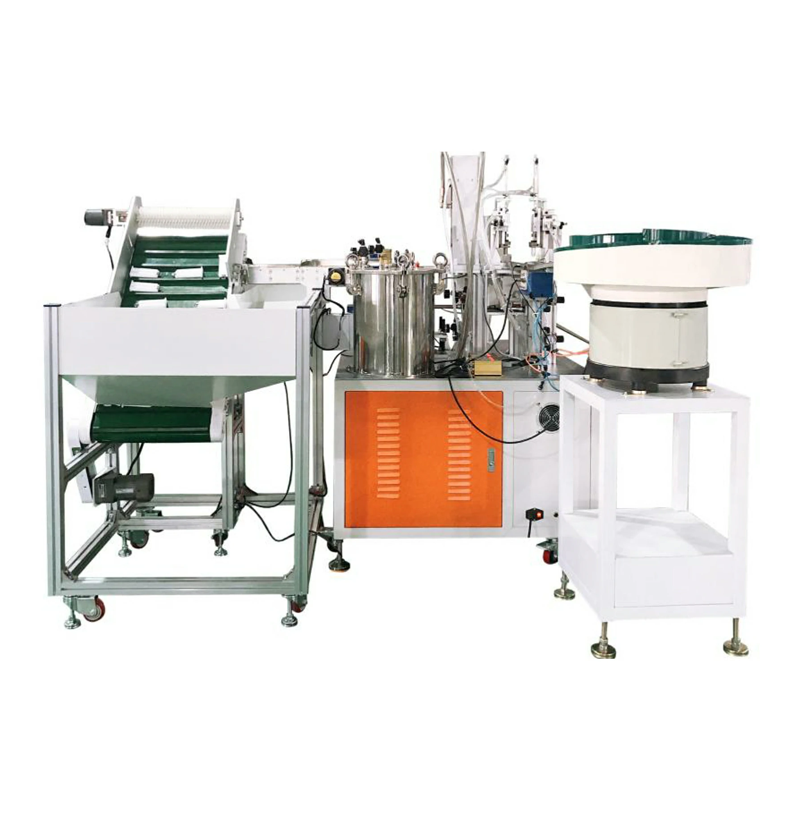

DH-F005-5010
Fully Automatic 2-Component Glue Filling Machine
Key Features：
-
Automatic material feeding
Filling and piston assembly
50ml, 75ml, 200ml, 250ml, 400ml, 490ml cartridges
Ratio - 1:1, 2:1, 4:1, 10:1
10-15 cartridges per minute
Viscosity - 100-200,000 mPa.s
-
Wattage - 4Kw
Air pressure - 0.4-0.7m
PaSiemens PLC and HMI
Glue tank - 20L - 200L
Compatible Consumables：

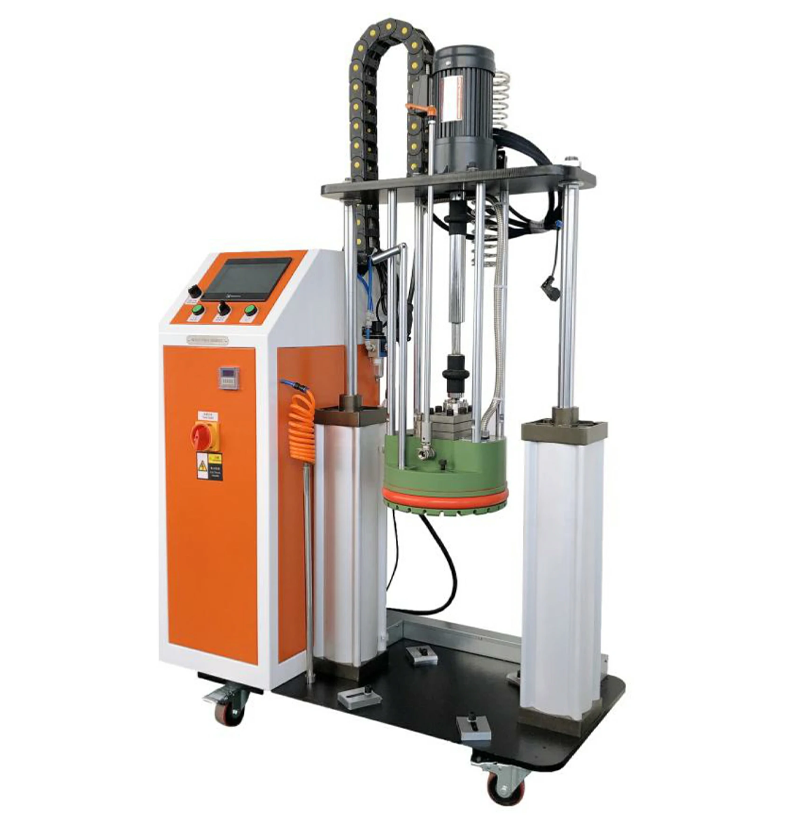

DH-R001
Hot Melt Glue Filling Machine
Key Features：
-
Small opening filling- piston pre-assembled
Original pack size - 20L barrel
30cc, 300cc high temperature cartridges
6-10 cartridges per minute
Viscosity - 100-2,000,000 mPa.s
-
Machine Size - L1100*W400*H1200mm
Wattage - 0.5Kw
Air pressure - 0.4-0.7mPa
Siemens PLC and HMI
Glue tank - 20L - 200L
Compatible Consumables：

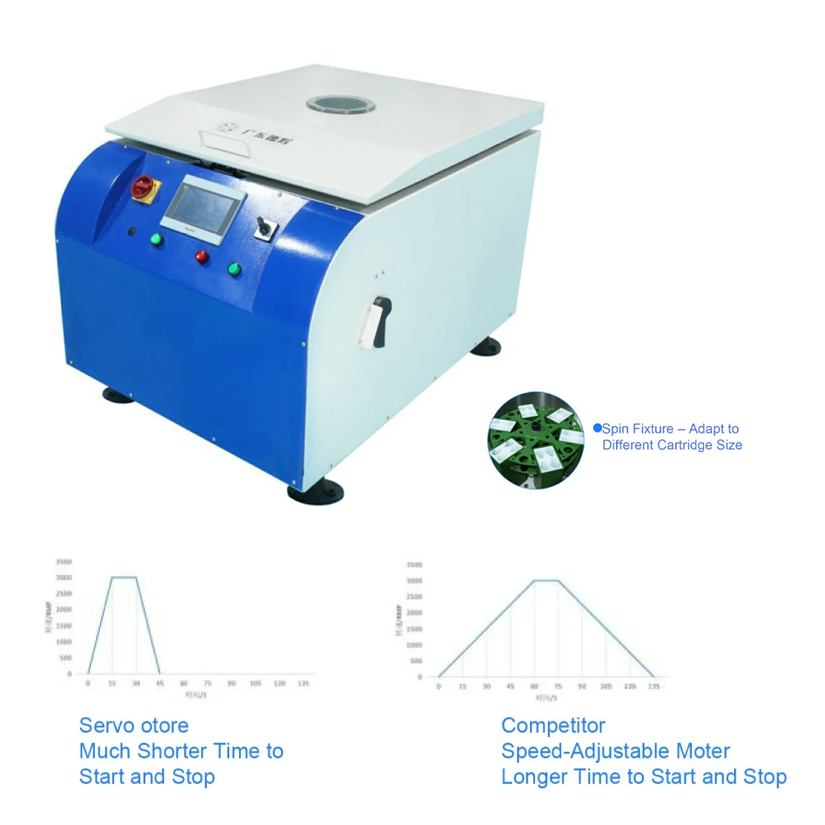

DH-LXJ-DX
Centrifugal Defoaming Machine
Key Features：
-
Remove air bubbles generated in filling process
Great improvement for high viscosity glue
Optional cooling functione
-
Machine Size-L1200*W850*H800mm
Machine Weight-250Kgs
Spin Speed-2000 RPM
Wattage-2Kw
Air pressure-0.4-0.7mPa
Siemens PLC and HMk
Reliable Filling for a Wide Range of Industrial Materials
Epoxies & Adhesives
Bubble-free filling of two-part structural adhesives, ensuring maximum bond strength.
Greases & Pastes
Powerful pumping system handles high-viscosity lubricants and thermal pastes with ease.
Polyurethanes
Precise ratio control and moisture-free handling for PU potting compounds and sealants.
Silicones & Sealants
Consistent and accurate filling of RTV silicones and construction sealants.
Your Partner for a Flawless Filling Process
Material Testing & Validation
We can test-fill your specific material in our lab to validate the process and guarantee performance before you purchase.
Installation & Commissioning
Our engineers provide on-site installation and training to get your production started smoothly.
Process Optimization
We help you fine-tune your filling parameters to maximize speed and accuracy.
Lifetime Technical Support
Responsive remote and on-site support to keep your machine running at peak performance.
Ready to Automate and Perfect Your Filling Process?
Let our experts analyze your current filling process and recommend a solution that will increase your quality, boost your throughput, and deliver a fast return on investment. Contact us for a free consultation.
