Dual-Component Adhesive Cartridges: Sizing, Mix Ratios (1:1 to 10:1), and Material Compatibility
Selecting the correct 2k adhesive cartridge is essential for maintaining volumetric accuracy, preventing resin degradation, and avoiding mechanical dispensing failures. A dual-component cartridge serves as both a hermetic storage vessel and a precision volumetric metering cylinder. Choosing an incompatible system often leads to off-ratio curing, barrel ballooning under pressure, moisture ingress, or monomer leaching.
Evaluating a two-component fluid packaging setup requires balancing three core engineering parameters: total volume capacity, mechanical volumetric mix ratio, and raw cartridge polymer compatibility. This guide outlines standard cartridge dimensions, details how differential barrel geometry controls stoichiometric dispensing, and provides a material selection matrix for reactive resin formulations.
Precision Dispensing Starts at Packaging: Understanding the 2K Adhesive Cartridge System
A two-component adhesive system relies on two isolated chambers to keep reactive base resins and activators chemically separated until they reach the static mixer nozzle. Unlike single-component packaging, a dual cartridge must maintain exact volumetric symmetry during extrusion to prevent cure inhibition, uneven cross-linking, or soft spots in the adhesive bond line.
| 2K Cartridge Functional Elements | |
| Component A Barrel (Resin) | Component B Barrel (Hardener) |
| [Piston A] -> Fluid Path | [Piston B] -> Fluid Path |
| Shared Outlet Neck / Interface (Twist-Lock, Bayonet, Bell) | |

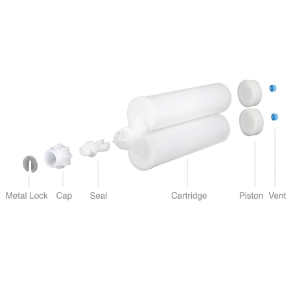

A complete system includes four integrated elements:
-
Rigid Dual Barrels: Parallel cylinders molded with precise internal wall tolerances to eliminate fluid bypass.
-
Matched Pistons: Plugs featuring single-lip, double-lip, or mechanical air-release vents to seal the chemistry and wipe the barrel walls cleanly during actuation.
-
Sealing Cap / Retaining Nut: Prevents cross-contamination at the fluid outlets during transit and storage.
-
Mixer Interface Neck: A dedicated connection point engineered for attachment to static or dynamic mixing elements.
Engineers evaluating complete two-component cartridge systems must ensure that structural wall stiffness can withstand dynamic hydraulic backpressure during high-viscosity dispensing without radial expansion.

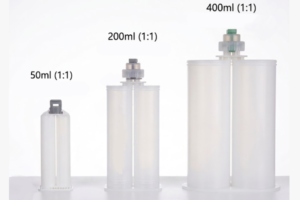

Cartridge Sizing Guide: From 50ml R&D Prototyping to 400ml+ High-Volume Production
Selecting cartridge capacity depends on bead size, open time (pot life) of the mixed adhesive, manual handling ergonomics, and the level of automation on the assembly line.
| Nominal Volume | Typical Ratio Options | Primary Dispenser Interface | Typical Production Environment |
| 50ml | 1:1, 2:1, 4:1, 10:1 | Manual hand gun, pneumatic benchtop | Laboratory testing, field repairs, micro-electronics encapsulation |
| 200ml | 1:1, 2:1 | Manual mechanical, pneumatic applicator | Medium-duty component bonding, maintenance operations |
| 400ml / 490ml | 1:1, 2:1, 4:1, 10:1 | Heavy pneumatic gun, automated robotic cell | Structural automotive bonding, composite assembly, continuous lines |
50ml Dual Cartridges
The 50ml cartridge configuration is the standard format for manual precision dispensing, low-volume sampling, and field-service repair kits. Because of its light weight and low extrusion force requirements, operators can apply fine dots or narrow beads without hand fatigue.
200ml to 400ml Dual Cartridges
For automated production cells and structural manufacturing, industrial operations use 200ml and 400ml formats. In demanding automotive structural bonding applications, 400ml systems reduce cartridge changeover frequency while providing sufficient fluid volume for long, uninterrupted adhesive beads.
Mastering Volumetric Mix Ratios: 1:1, 2:1, 4:1, and 10:1 Configurations
Dual-component reactive adhesives must be mixed in precise stoichiometric volumetric proportions. Cartridge barrels physically dictate this ratio through their proportional internal cross-sectional surface areas.

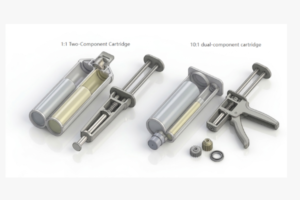

The volumetric ratio is determined by the cross-sectional areas of the two barrels. A 1:1 configuration has equal internal diameters, giving 50% volume to each barrel. A 10:1 configuration uses a large resin barrel (90.9%) and a small catalyst barrel (9.1%).
1:1 and 2:1 Mix Ratios
These configurations feature equal or near-equal barrel diameters and represent the most common packaging formats for standard formulations, such as an epoxy cartridge. Polyurethanes and room-temperature-vulcanizing (RTV) silicones also commonly use 1:1 or 2:1 volumetric proportions. Hydraulic pressure remains balanced across both pistons during extrusion, minimizing the risk of ratio skewing.
4:1 and 10:1 Mix Ratios
High-differential systems utilize a large base resin barrel paired with a narrow activator barrel. These ratios are standard for:
-
Structural Methyl Methacrylates (MMA)
-
Fast-curing acrylic systems using concentrated peroxide catalysts
-
Specialized polyurethanes requiring low-volume cross-linkers
High-ratio configurations require high barrel wall rigidity. If the smaller catalyst cylinder exhibits wall flex or the piston suffers from frictional drag, the system will experience ratio drift, resulting in under-cured or tacky adhesive joints.
Cartridge Material Selection: PP, PA, and PBT Compatibility with Reactive Chemistries
Selecting the raw polymer for the cartridge body and internal pistons requires evaluating the reactive groups, carrier solvents, and shelf-life requirements of the fluid chemistry.
| Polymer Selection vs. Target Fluid Matrix | ||
| Polymer Type | Key Barrier Strengths | Recommended Chemistries |
| Polypropylene (PP) | Moisture barrier | Epoxies, Standard PU |
| Polyamide (PA/Nylon) | Solvent/Monomer resist | MMAs, Acrylics |
| Polybutylene (PBT) | Gas/Vapor barrier | Moisture-sensitive PU |
-
Polypropylene (PP): Standard material for general-purpose adhesive packaging. PP provides moisture barrier performance and broad chemical resistance, making it suitable for standard epoxies and general-purpose adhesives.
-
Polyamide (PA / Nylon): Resistant to aggressive monomers, esters, and ketones. PA is the standard choice for methyl methacrylate (MMA) and structural acrylics, which can cause PP barrels to soften or swell over time.
-
Polybutylene Terephthalate (PBT): Selected for high gas-barrier and vapor-barrier requirements. PBT prevents moisture transmission in sensitive isocyanate-based polyurethanes and specialized electronics encapsulation solutions.
System Integration: Integrating Cartridges with Static Mixers and Dispensing Guns
A dual cartridge cannot function as an isolated component; it must integrate seamlessly with pistons, dispensing tools, and downstream static mixing elements.
Dual Cartridge → Outlet Interface → Static Mixer Nozzle; Dispensing Tool Plungers → Matched Air-Release Pistons.
Mixer Interface Connections
The discharge outlet must match the static mixer attachment mechanism:
-
Bayonet / Twist-Lock: Common on 50ml systems for quick installation.
-
Bell Mouth with Retaining Nut: Standard on 200ml and 400ml systems to withstand high hydraulic extrusion pressures without dislodging.
Piston Design and Air Bleed Mechanics
During factory filling, trapped air between the fluid surface and the piston head can cause dispensing voids, drooling, and off-ratio surges.
-
Standard Lip Pistons: Suitable for vacuum-assisted back-filling setups.
-
Air-Release (Self-Venting) Pistons: Feature micro-valves or permeable center plugs that allow air to escape during manual or automated insertion, sealing immediately upon contact with the liquid resin.
For complete fluid management, combine certified dual barrels with properly sized static and dynamic mixers engineered for the fluid viscosity and mix ratio.
Standard vs. Custom 2K Cartridges: When to Request Custom Tooling
Standard off-the-shelf cartridges meet universal dimensional standards and fit industry-standard manual, pneumatic, and battery-powered applicators. However, specific commercial, formulation, and automation constraints may require custom tooling.
Standard Catalog Options:
- Standard 50ml / 200ml / 400ml configurations
- Universal bayonet / bell connections
- Rapid delivery for standard production
Custom Molded Options:
- Non-standard mix ratios (e.g., 3:1, 5:1, or 8:1)
- Dedicated keyway interfaces (prevents using incorrect mixers)
- Custom barrier additive compounding and custom opaque colors
- In-mold branding and automated pack-line integration
When production demands proprietary fluid interfaces or custom volumetric capacities, manufacturers can evaluate custom cartridge manufacturing capabilities to develop dedicated mold tooling and packaging solutions.
Key Takeaways
-
Volumetric Mix Integrity: Dual cartridges mechanically control stoichiometric dispensing ratios (1:1, 2:1, 4:1, 10:1); barrel rigidity is critical to prevent ratio skewing under pressure.
-
Application-Driven Sizing: 50ml cartridges serve precision and manual tasks; 200ml to 400ml formats provide the volume needed for structural bonding and automated production cells.
-
Chemical Compatibility: Use PP for epoxies and general moisture resistance, PA (Nylon) to prevent swelling from acrylic/MMA monomers, and PBT for moisture-sensitive polyurethanes.
-
System Integration: Successful dispensing relies on pairing the cartridge with matched air-release pistons, correct interface connections, and properly sized static mixers.
Once the package is defined, match it to the tool with this cartridge-format and dispensing-gun selection guide.
After identifying the package, the dual-cartridge epoxy gun guide shows how ratio geometry, force evidence, and the material-loaded sample become one controlled release.
Frequently Asked Questions (FAQ)
Can I use a 1:1 static mixer on a 10:1 ratio dual cartridge?
No. High-ratio formulations (such as 10:1) require a static mixer with a larger number of mixing elements and a specific internal diameter to achieve complete shear and homogeneous blending of the small catalyst stream into the large base resin stream.
What is the difference between standard PE pistons and air-release pistons?
Standard PE pistons rely on vacuum-filling techniques to eliminate headspace air. Air-release pistons incorporate integrated mechanical vent valves that allow trapped air to bleed out during piston insertion, creating a bubble-free seal directly on top of the fluid column.
Are industrial 2K adhesive cartridges compatible with standard dispensing guns?
Yes, standard 50ml, 200ml, and 400ml dual-component cartridges follow standardized industry exterior profiles, neck spacing, and flange dimensions to ensure direct compatibility with universal manual and pneumatic dispensing guns.
Please contact Haijing for technical support.
Select the right packaging configuration to safeguard resin stability and dispensing accuracy. To evaluate material compatibility, verify barrel tolerances, or test air-release piston seating with your specific adhesive chemistry, submit your fluid specifications and volumetric requirements to request an engineering sample kit. For dedicated barrel volumes, proprietary mixer connections, or private-label molding projects, reach out to the HaiJing technical team to review custom tooling options.
